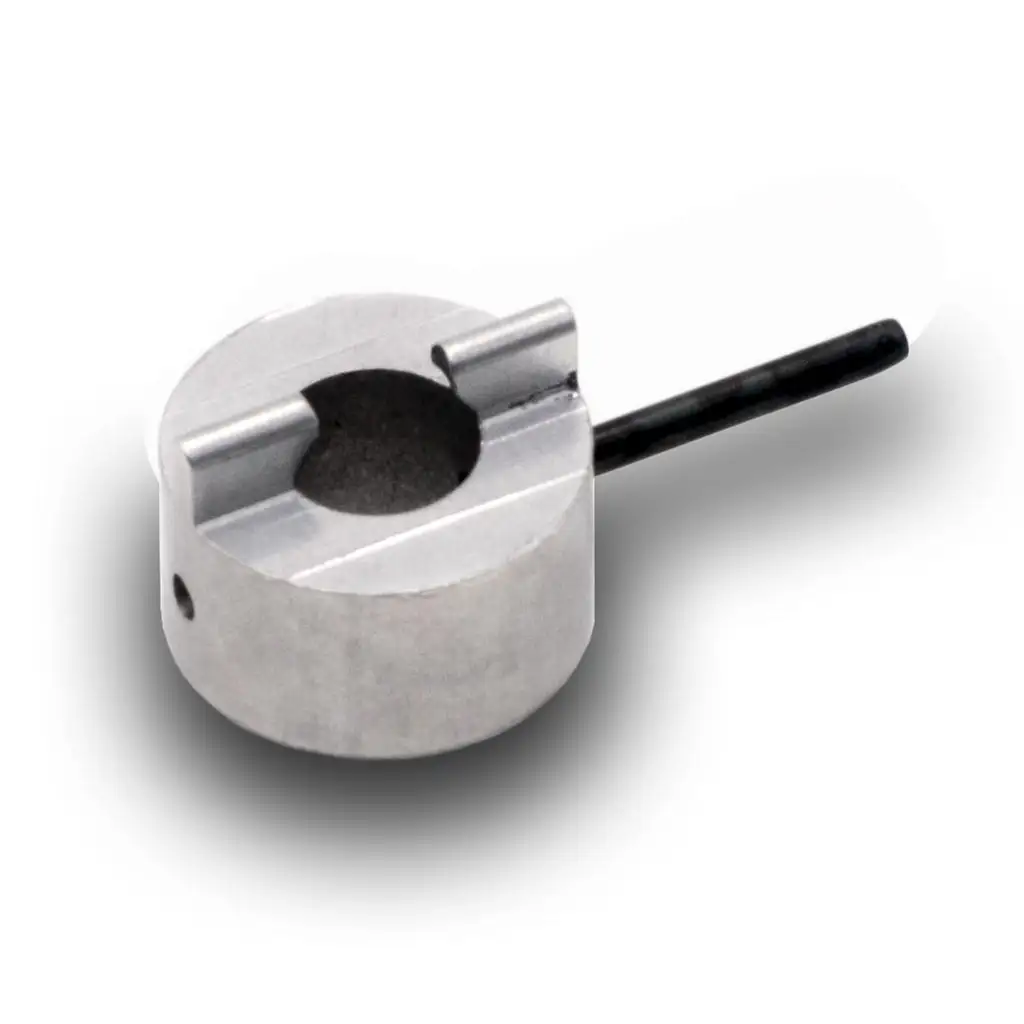

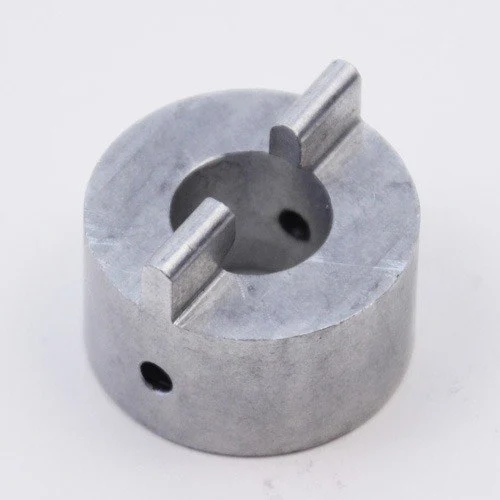

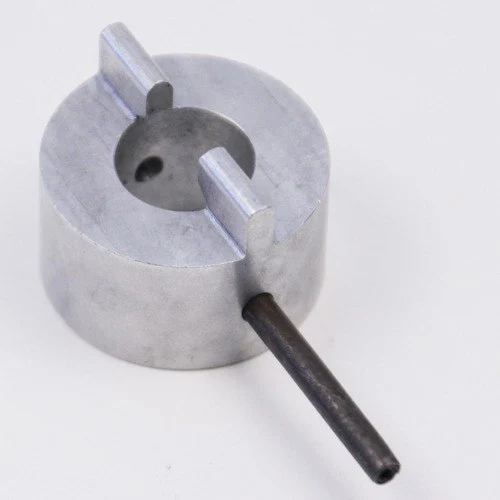

Stewart GolfTwo Tang Drive Dogs

For use with all X1R and X3R models that use the original wheels.

The two drive dogs are supplied complete with the spirol pins that secure the part to the motor and axle.

To replace the drive dog, you will first need to remove the old one. This is best performed as follows:

• With the trolley folded, place it upside down on a soft surface to avoid scratches.
• Using a 3mm pin punch (with a flat end, do not use a pointed centre punch), knock out the old pin and remove the drive dog.
• Align the new drive dog with the hole through the axle and motor stub axle, and drive through the new pin with a hammer. Be careful not to damage the motor with the hammer.
